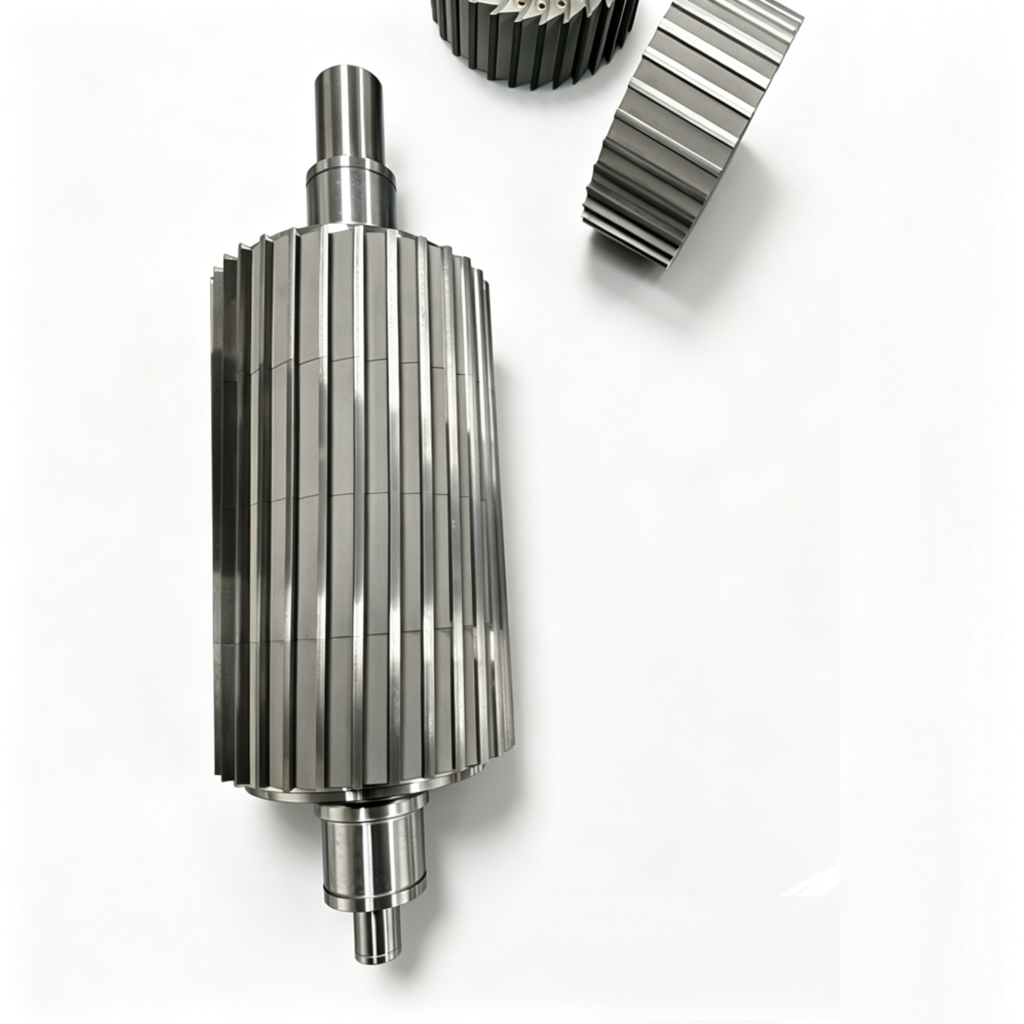

Carbide-Inserted Pelletizing Rotors
Precision-Ground After Assembly for High-Abrasion Strand Pelletizing
Segmented tungsten carbide inserts are assembled into a high-strength steel rotor body and finish-ground as one complete unit, helping maintain consistent cutting-edge geometry, stable operation and uniform pellet quality.

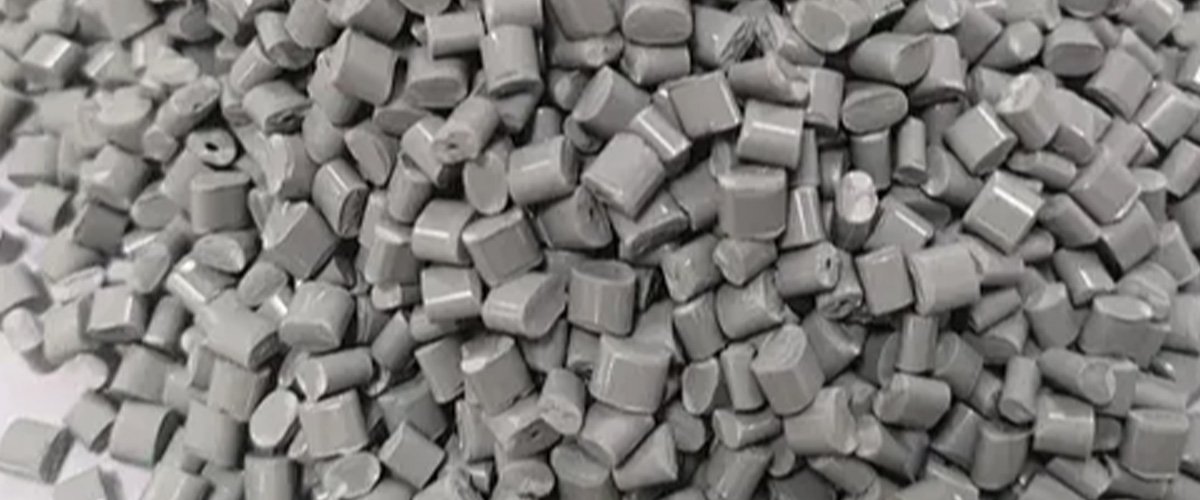

Glass Fiber Reinforced Compounds
For PA6, PA66, PBT, PPS and other glass-fiber-reinforced engineering plastics where abrasive fillers accelerate cutting-edge wear.
Carbon Fiber & Highly Filled Materials
For carbon-fiber-reinforced, mineral-filled and other high-abrasion compounds where conventional cutting materials can wear rapidly.
POM & Difficult-to-Cut Materials
For POM and other demanding materials where cutting stability, rotor material selection and controlled tooth geometry are especially important.
Polyolefin & Engineering Resins
Suitable for PP, PE, HDPE, PBT, PC/ABS and other resin lines requiring stable pellet dimensions and consistent cutting quality.

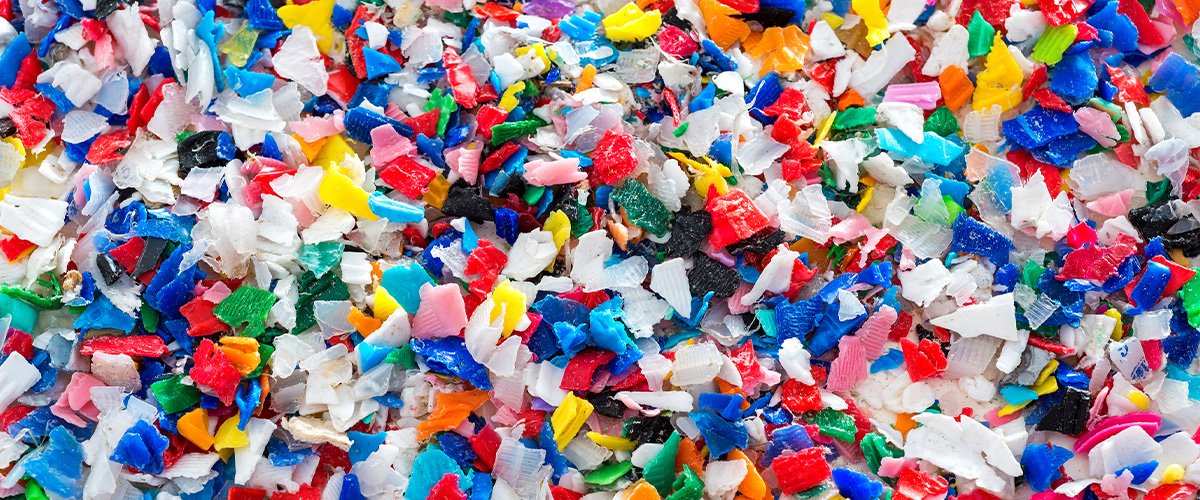

Recycled & Contaminated Materials
Recycled compounds can contain mixed polymers, fillers, impurities and hard contaminants that create unstable cutting conditions and accelerate rotor wear.

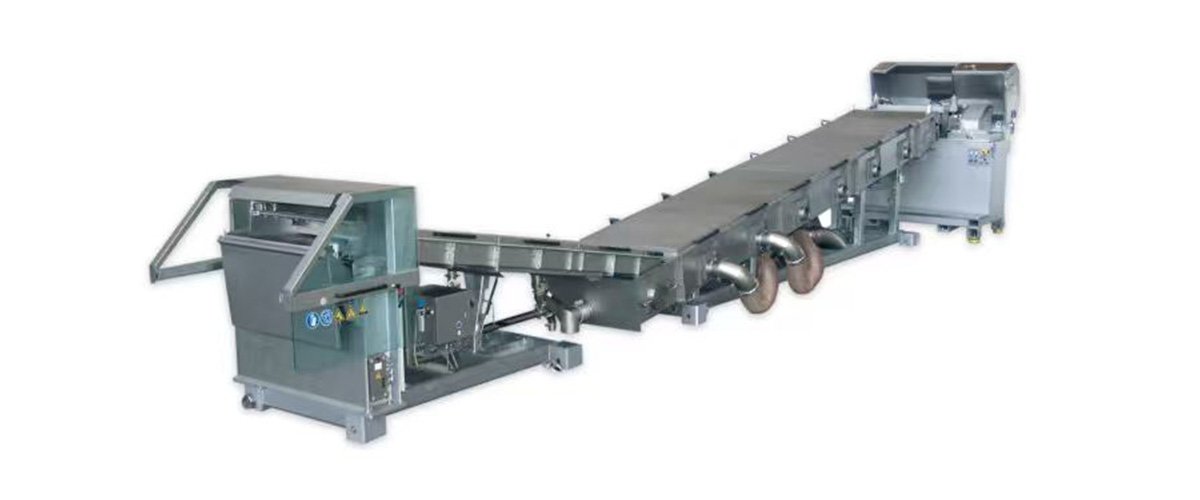

Continuous Compounding & Pelletizing Lines
For medium- and high-output production lines where rotor wear, replacement frequency and cutting stability directly affect production uptime.
Rotor material, cutting structure and surface protection are selected according to the processed polymer, filler content, abrasiveness, contamination level and operating conditions.
Engineering Features That Extend Rotor Life
Precision construction, wear-resistant materials and controlled manufacturing processes help deliver stable cutting performance and long-term operating value.

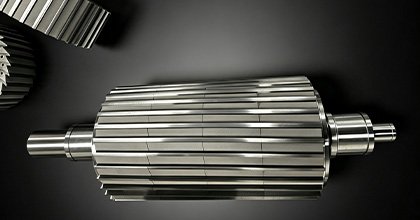

Insert-Type Carbide Structure
Segmented tungsten carbide cutting elements are integrated into a high-strength steel rotor body, combining structural support with wear resistance in demanding strand pelletizing operations.

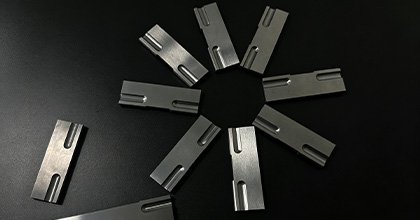

Premium Tungsten Carbide Inserts
High-hardness tungsten carbide helps maintain cutting-edge stability when processing glass-fiber-reinforced, carbon-filled, mineral-filled and other abrasive engineering plastics.

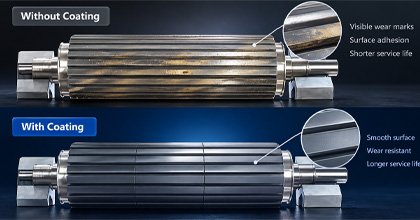

Ceramic Wear-Resistant Coating
A wear-resistant ceramic coating helps protect the exposed rotor body from continuous contact with abrasive compounds, complementing the carbide cutting elements and helping reduce rotor-body wear during pelletizing.
Finish Grinding After Complete Rotor Assembly
After all carbide elements have been installed on the rotor shaft, the complete assembly undergoes final grinding. This establishes a common cutting reference across the full rotor and supports uniform contact with the opposing bedknife.

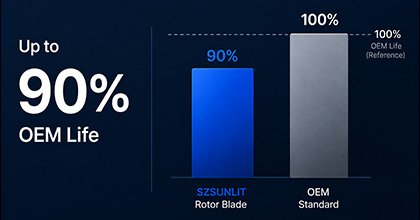

Up to 90% of OEM Service Life at Better Value
In selected customer applications, SZSUNLIT rotors have achieved service life approaching that of European OEM components while offering substantial savings in replacement purchasing cost.
From Blade Machining
to Final CNC Grinding
Rotor blade manufacturing involves multiple precision processes, from individual blade machining and inspection to rotor assembly and final CNC grinding as a complete unit.
Blade Machining
Individual rotor blades are precision machined to achieve the required cutting geometry and dimensional consistency.

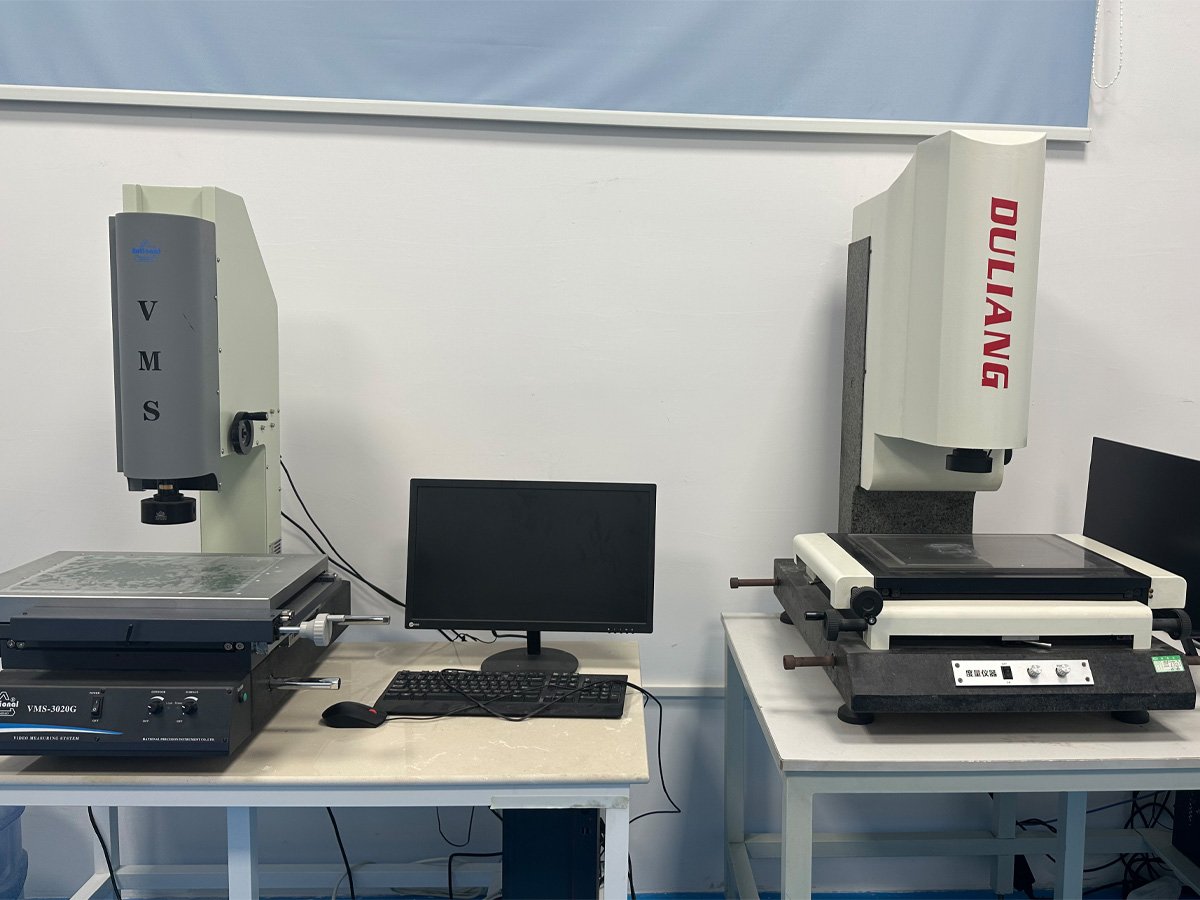

Blade Inspection
Finished blade components are inspected before assembly to verify critical dimensions and surface quality.
Rotor Machining & Assembly
Rotor components are precisely machined and assembled with controlled positioning to maintain consistent geometry and cutting alignment.

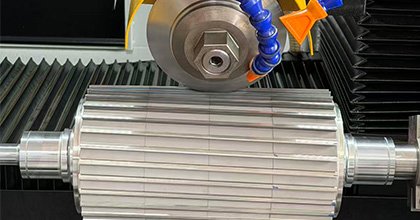

Final CNC Grinding
After assembly, the complete rotor is CNC ground as a unit to achieve a consistent cutting surface and precise final geometry.
The production video shows selected manufacturing processes, including blade inspection, rotor machining, assembly and final CNC grinding.
Precision Control for Stable Rotor Performance
Every pelletizing rotor is manufactured and inspected around the critical parameters that determine cutting stability — shaft accuracy, assembled rotor geometry, tooth profile and final surface condition.
≤ 5 μm Shaft Precision
Critical shaft geometry is controlled within 5 μm to support accurate rotor positioning, concentricity and stable rotation during continuous operation.
Finish-Ground After Assembly
After the cutting elements are assembled, the complete rotor undergoes final grinding as one unit to establish consistent cutting height and geometry across the rotor.
≤ 2° F-Type Tooth Geometry
For F-type rotor designs, tooth-angle accuracy can be controlled within 2°, supporting consistent cutting engagement and stable pellet formation.
Wear-Resistant Surface Protection
For abrasive applications, specialized surface coatings can be applied to reduce rotor-body wear and help maintain stable performance over extended production cycles.
Custom rotor dimensions and tooth geometries can be manufactured according to OEM drawings, samples or existing part numbers.
Customer Case
Verified in Real Production
Real feedback from customer trial runs across different engineering plastics, demonstrating stable cutting performance and consistent pellet quality.

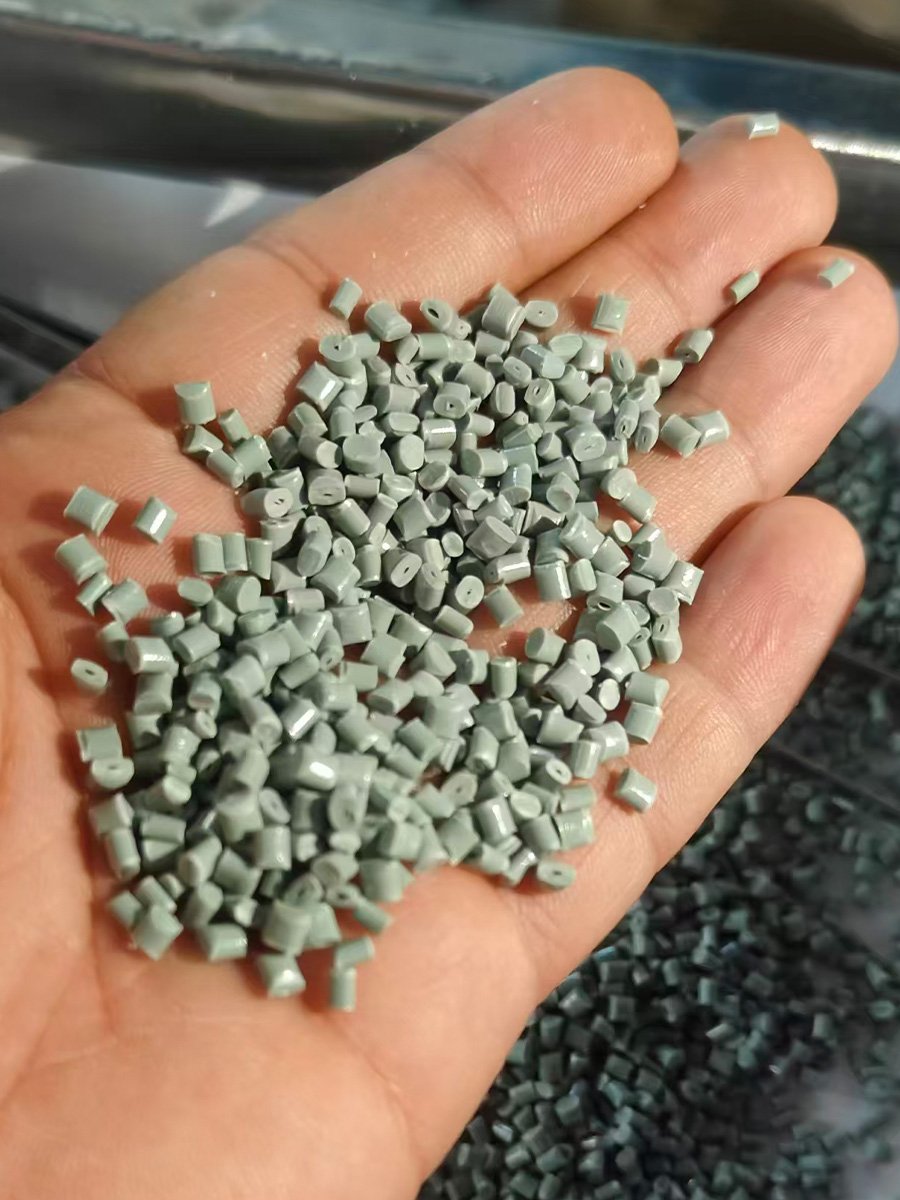

PC
The first production trial ran successfully, with stable pellet appearance and generally consistent cutting results.

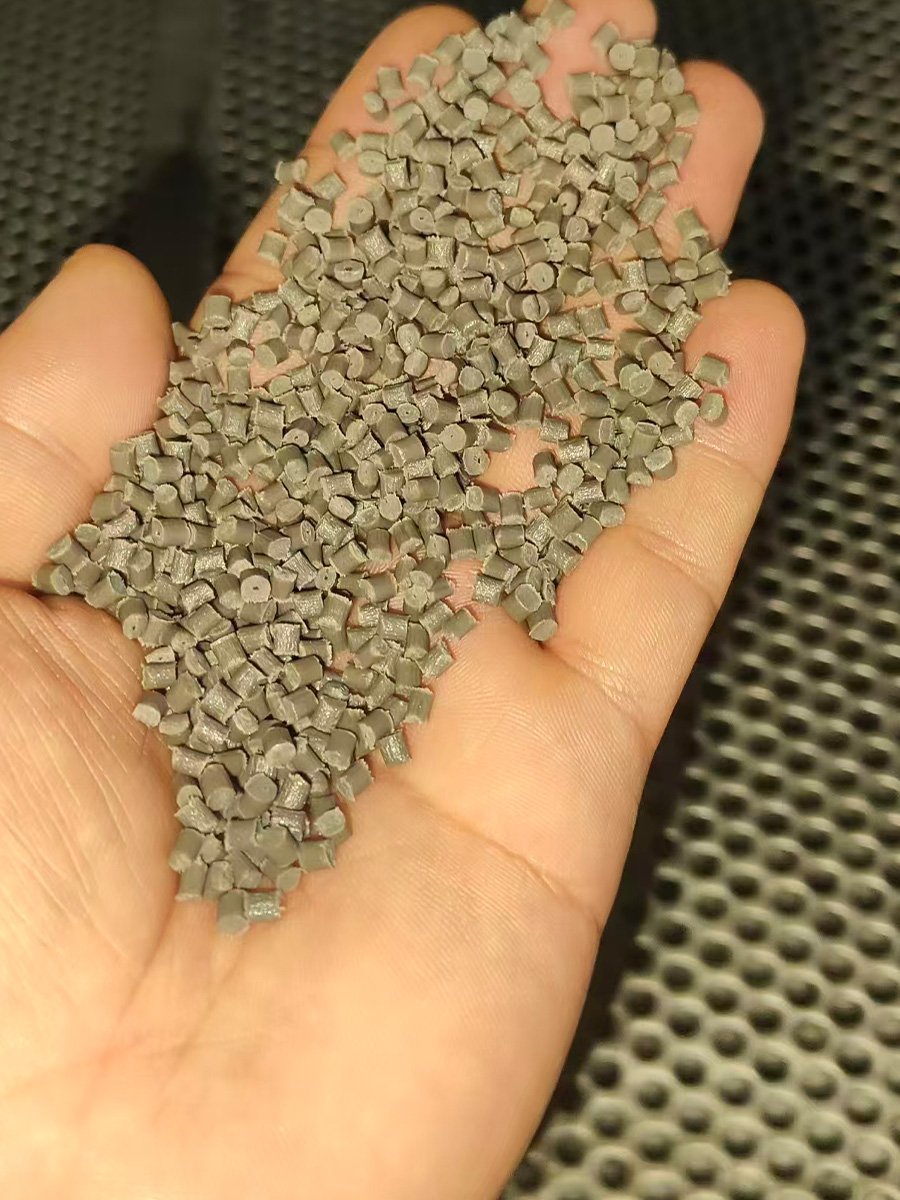

Glass Fiber Reinforced PA66
Trial production using glass-fiber-reinforced nylon showed stable pellet appearance under abrasive processing conditions.

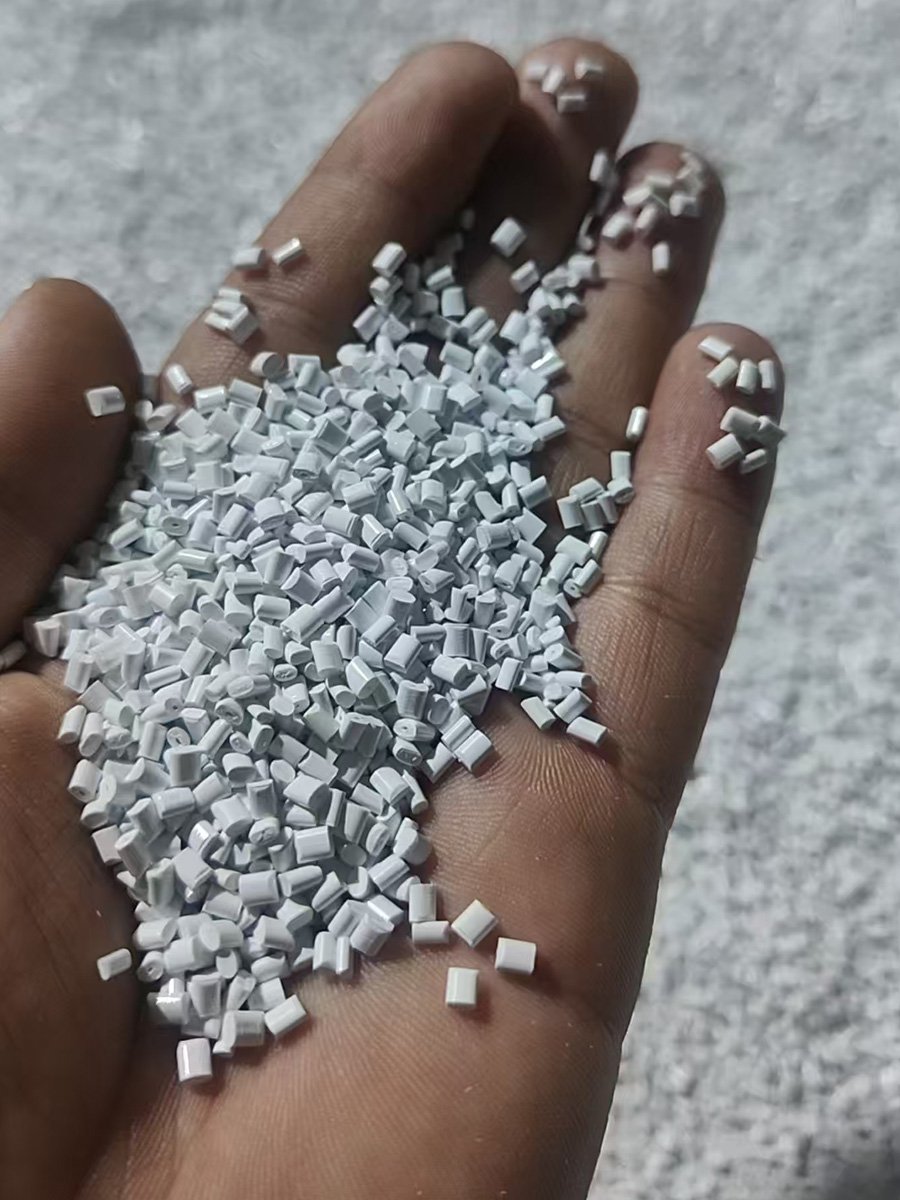

PA
The final trial produced clean, uniform pellets and received highly positive feedback from the customer.
Complete Rotor & Bedknife Solution
One Supplier. One Optimized Cutting System.
Rather than supplying individual replacement parts, we engineer matched rotor blades and bedknives as a complete cutting system. By optimizing the cutting geometry, clearance and material pairing, customers achieve more stable pellet quality, longer service life and lower maintenance costs.
✔ Matched Cutting Geometry
Rotor blades and bedknives are manufactured as a compatible set for consistent cutting performance.
✔ Reduced Wear
Optimized contact between the rotor and bedknife minimizes uneven wear and extends service life.
✔ OEM-Compatible Dimensions
Direct replacement for major European pelletizing systems without machine modification.
✔ One Supplier, Easier Maintenance
Source the complete cutting system from one manufacturer to simplify purchasing and ensure compatibility.
SZSUNLIT — Precision-engineered pelletizing knife solutions for cleaner cuts, longer service life and stable production
